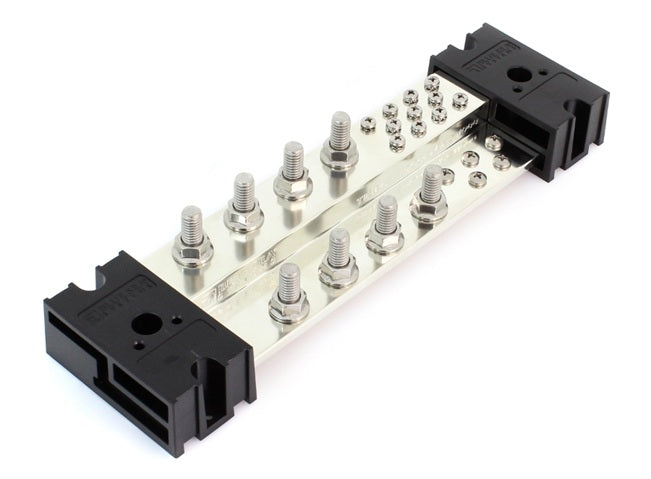

Blue Sea Systems 1000A Powerbar Bus Bar 1990

Specifications: Maximum Voltage 150V, 8 Terminal Studs, Terminal Stud Torque 140 in-lb (15.82 Nm), 1000A Continuous Rating, Screw Terminal Torque 15 in-lb (1.69 Nm) / 18 in-lb (2.03 Nm), 1000 Amp busbar for large complex wiring systems, Tin plated pure electrical copper for maximum conductivity, Stepped bus design offers two elevations for conductors which doubles the density of the wire loom compared to traditional bus bars, Busbar and fuse block elevations match common fuse blocks allowing for multiple fuse block attachment eliminating the need for connecting cables, One-piece serrated flange nuts ensure correct and secure connections, Stainless steel 8-32 screws with captive lock washers for securing smaller gauge wires, Busbar may be cut to a shorter length to accommodate constricted spaces, Bi-directional busbar end caps allow the ganging of additional busbars, Snap on insulating cover not included.
