Navico Precision-9 Compass Unit Kit 000-12607-001

Navico Precision-9 Compass Unit Kit

Part#: 000-12607-001

Specifications: Used with Lowrance, Simrad & B&G Autopilot Applications. **Please check your application for fitment.

NMEA 2000 Heading & ROT Output
With NMEA 2000 output, the Precision-9 Compass provides heading, Rate Of Turn (ROT), pitch and roll information to connected equipment including autopilots, radar, multifunction displays, and other navigational systems.

Solid-State Sensor Technology
The Precision-9 Compass incorporates a sophisticated solid-state sensor array based on MEMS technology. This high-precision array measures motion on nine separate axes in order to calculate the most accurate heading and rate-of-turn information possible, avoiding many common limitations of conventional fluxgate electronic compasses and delivering heading accuracy of ±2 degrees after calibration.

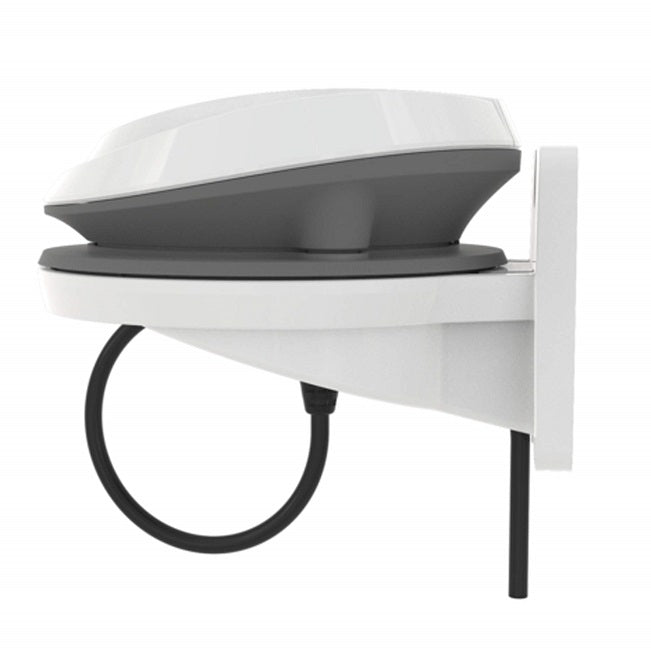

Mount Almost Anywhere
An easily adjustable mounting bracket allows the Precision-9 Compass to be installed on any vessel, in almost any location. The compass may also be mounted directly to any flat surface and, with an IPX7 waterproof rating, external up-mast installation is possible on steel hulled vessels to avoid magnetic interference. Installation is further simplified by NMEA 2000 connectivity, with a single cable carrying both power and data.
